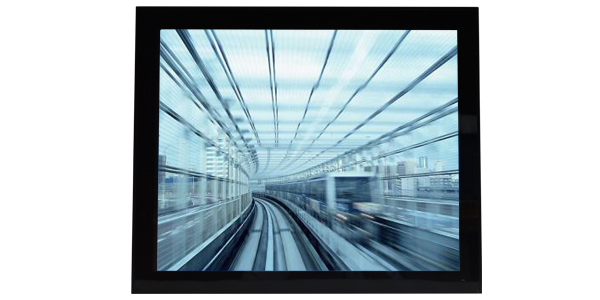

BOE 18.4寸-75寸 工業 醫療液晶屏產品涵蓋18.4英寸至75英寸等主流尺寸，具有四等邊設計、支持隨時橫豎屏切換使用等特點，廣泛應用于醫療影像、商場、零售、餐飲、藝術展示、軌道交通等行業，實現廣告展示、交互式信息發布等功能。
|
| Model | Size | Resolution | interface module | luminance （nits) |
Life Time（Hr) | Viewing Angle（L/R/U/D） | Contrast Ratio | operating temperature(℃) | Active Area（mm) | Outline dimension （mm) |
| EV184QUM-N80 | 18.4" | 3840x2160 | EDP | 1000 | 30000 | 89/89/89/89 | 1000：1 | 0/60 | 408.96x230.04 | 431.00x255.94x10.00 |
| DV185WHM-NM1 | 18.5" | 1366x768 | LVDS | 250 | 30000 | 89/89/89/89 | 1000:1 | 0/50 | 409.8x230.4 | 430.4x254.6x10.9 |
| DV185WHM-NM2 | 18.5" | 1366x768 | LVDS | 500 | 50000 | 89/89/89/89 | 1000:1 | 0/50 | 409.8x230.4 | 430.4x254.6x10.9 |
| GV185FHM-N10 | 18.5" | 1920x1080 | LVDS | 350 | 50000 | 85/85/85/85 | 1200:1 | -20/70 | 408.96x230.04 | 430.4x254.6x12 |
| QV185FHM-N80 | 18.5" | 1920x1080 | LVDS | 350 | 50000 | 89/89/89/89 | 1000:1 | 0/50 | 108.96x230.04 | 430.4x254.6x12 |
| EV190WPM-N11 | 19.0" | 1680x1050 | LVDS | 350 | 30000 | 89/89/89/89 | 1000:1 | 0/60 | 409.5*255.9375 | 444x283.3x15.5 |
| MV190E0M-N10 | 19.0" | 1280x1024 | LVDS | 250 | 30000 | 89/89/89/89 | 1000:1 | 0/50 | 374.748x299.8272 | 396x324x9.9 |
| ZV190E0M-N10 | 19.0" | 1280x1024 | LVDS | 450 | 50000 | 89/89/89/89 | 1000:1 | -20/70 | 374.748x299.8272 | 396x324x9.9 |
| DV190E0M-N11 | 19.0" | 1280x1024 | LVDS | 250 | 30000 | 89/89/89/89 | 1000:1 | 0/50 | 374.748x299.8272 | 396x324x9.9 |
| EV213U0M-N10 | 21.3" | 1600x1200 | LVDS | 2000 | 50000 | 88/88/88/88 | 1800:1 | 0/50 | 432x324 | 457x350x16.75 |
| EV213QXM-N10 | 21.3" | 1536x2048 | LVDS | 900 | 50000 | 89/89/89/89 | 2000:1 | 0/50 | 324.86x433.15 | 336x453x16.85 |
| GV215FHM-N10 | 21.5" | 1920x1080 | LVDS | 350 | 30000 | 89/89/89/89 | 1000:1 | -20/70 | 476.64x268.11 | 495.6x292.2x10.7 |
| DV215FHM-NN0 | 21.5" | 1920x1080 | LVDS | 500 | 30000 | 89/89/89/89 | 1000:1 | 0/50 | 476.064x267.786 | 495.6x292.2x10.7 |
| HR215WU1-120 | 21.5" | 1920x1080 | LVDS | 250 | 30000 | 89/89/89/89 | 1000:1 | 0/50 | 476.64x268.11 | 495.6x292.2x10.7 |
| MV238FHM-N10 | 23.8" | 1920x1080 | LVDS | 250 | 30000 | 89/89/89/89 | 1000:1 | 0/50 | 527.04x296.46 | 543x317.4x11.1 |
| EV238FHM-N21 | 23.8" | 1920x1080 | LVDS | 600 | 50000 | 89/89/89/89 | 1000:1 | 0/50 | 527.04x296.46 | 543x317.4x14.9 |
| EV238FHM-N13 | 23.8" | 1920x1080 | LVDS | 300 | 30000 | 89/89/89/89 | 1200:1 | 0/50 | 527.04× 296.46 | 543.1×317.5×11.4 |
| EV240WUM-N10 | 24.0" | 1920x1200 | LVDS | 600 | 50000 | 89/89/89/89 | 1000:1 | 0/50 | 518.4x324.0 | 546.4x352x11.7 |
| EV270QUM-N10 | 27.0" | 3840x2160 | EDP | 1000 | 30000 | 89/89/89/89 | 1000:1 | 0/50 | 597.736x335.664 | 630x368.2x20.98 |
| EV270QUM-N11 | 27.0" | 3840x2160 | EDP | 1000 | 30000 | 89/89/89/89 | 1000:1 | 0/50 | 597.736x335.664 | 630x368.2x20.98 |
| HR270WU1-200 | 27.0" | 1920x1080 | LVDS | 725 | 30000 | 89/89/89/89 | 1000:1 | 0/50 | 597.888x336.312 | 630x368.2x15.2 |
| EZ315KKM-A4Z | 31.5" | 3840x2160 | EDP | 1125 | 30000 | 89/89/89/89 | 2000:1 | 0/50 | 697.3056× 392.2344 | 709.66×412.09×23.26 |
| DV320FHM-NN0 | 32.0" | 1920x1080 | LVDS | 400 | 30000 | 89/89/89/89 | 1200:1 | 0/50 | 698.4x392.85 | 415.05x716.20x8.95 |
| EV550QUM-N10 | 55.0" | 3840x2160 | V by one | 800 | 50000 | 89/89/89/89 | 1200:1 | 0/50 | 1209.6x680.4 | 1232.8x703.6x17 |
| DZ550DEM-811 | 55.0" | 3840x2160 | V by one | 2500 | 50000 | 89/89/89/89 | 2500000:1 | -20/70 | 1209.6×680.4 | 1231.3 × 702.5x58.75 |
| DZ650DFM-A10 | 65.0" | 3840x2160 | V by one | 2500 | 50000 | 89/89/89/89 | 2500000:1 | -20/70 | 1428.48× 803.52 | 1448.4 × 827.9x58.75 |
| DZ750FAM-010 | 75.0'' | 3840x2160 | V by one | 1000 | 30000 | 89/89/89/89 | 1200:1 | 0/50 | 1649.6× 927.9 | 1675.0 × 954.0x62.6 |
| DZ750DGM-810 | 75.0'' | 3840x2160 | V by one | 2500 | 50000 | 89/89/89/89 | 2500000:1 | -20/70 | 1649.6× 927.9 | 1672.9× 951.4x58.75 |
